Reversing camera, 4 reversing sensors, monitor, control unit, buzzer (buzzer) - set

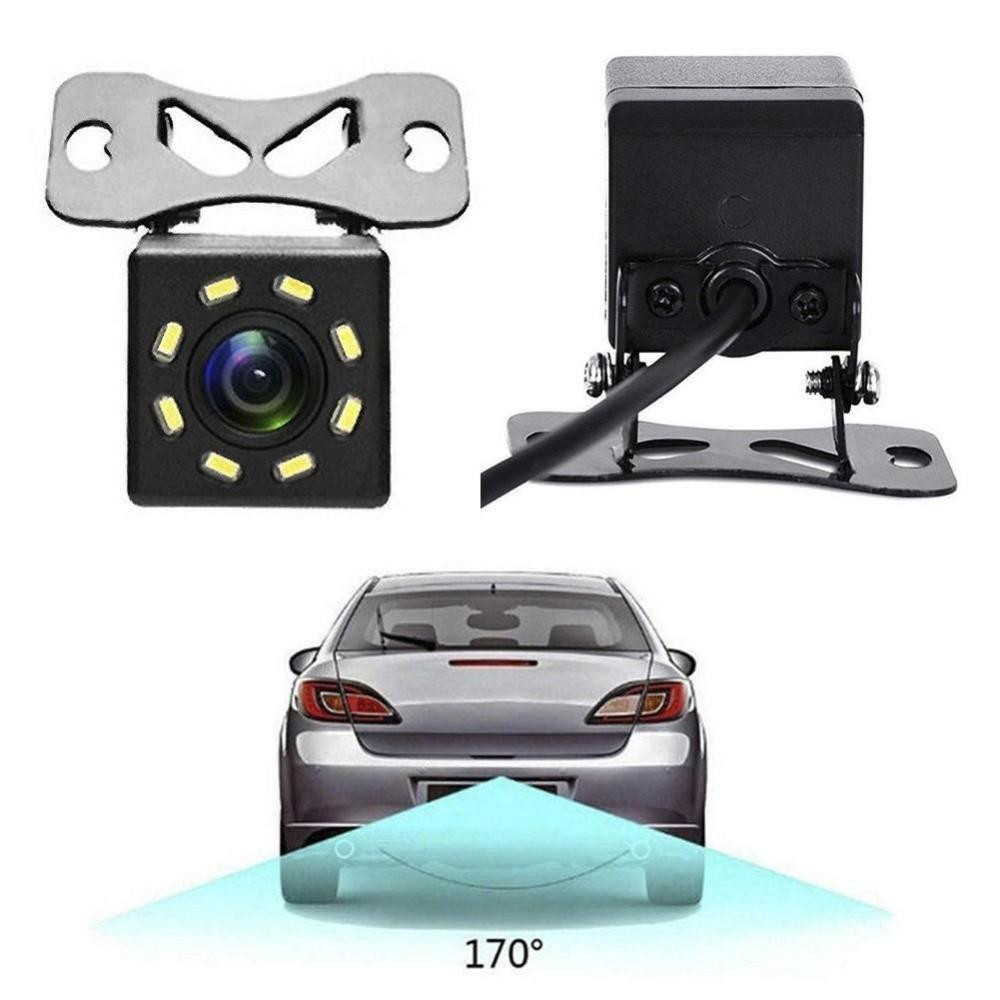

1.  Reversing, parking, day/night Mini IP68 140 camera The device connects to any monitor with a video input. The camera turns on automatically when reverse gear is engaged. The image from the camera is displayed in color. Generates auxiliary parking lines on the screen. Bumper mount camera. The most important features

Actual viewing angle - 140 degrees Vertical adjustment of the angle of inclination up to 90 degrees Displays parking guidelines on the screen. Waterproof grade: IP68 Universal mounting (2 holes) 2 mounting screws included

Camera technical specifications:

video format: PAL/NTSC Resolution: 628 x 586 (PILE) / 510 x 496 (NTSC) video output: RCA connector 1.0vp-p 75ohm Image in color: Yes Day/night image 8 LEDs for illumination at night Displaying guide lines: Yes Viewing angle: 170° operating temperatures: -20°C to +70°C Waterproof grade: IP68 Power: 12V Camera dimensions: 22mm x 22mm x 23mm Handle dimensions: 40mm x 20mm

2. 4 reverse sensors, control unit, buzzer (buzzer) - set Universal 25mm ultrasonic sensors, set of 4 parking sensors with control panel and buzzer (buzzer), which emits a sound signal that increases in frequency as the distance from the obstacle decreases. The pika gets faster the closer the car is to the obstacle. The sensors are black, but they can be painted in any color. The sensors are activated automatically when you put the reverse gear on. They support the parking process. The principle of operation is based on ultrasonic waves which, after being reflected from an obstacle, return to the sensor. The distance from the obstacle is signaled by a sound that is emitted at smaller intervals the closer the car is to the obstacle. Installation in the front and rear bumpers.

Technical Specifications:

Power: 12V (10.5V-16V) Power consumption: <4W Power supply current: 40-300mA Device operating temperature: from -40°C to +80°C Display operating temperature: from -20°C to +60°C Ultrasonic frequency of sensors: 40KHz Sensor diameter: 25mm Diameter of the hole for sensors 22mm Sensor cable length: 2.25m Length of cable to buzzer: 2.4m Cable length for connecting the display: 2.2m (no display included) Length of the power cord: 80cm 3. Universal 4.3" color monitor, two inputs

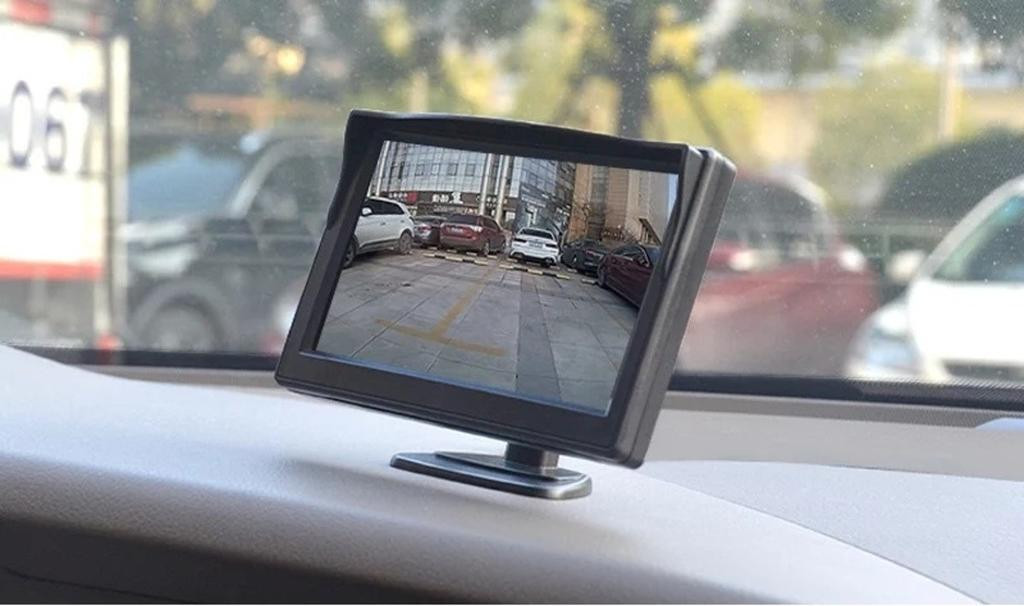

Monitor - LCD display cooperating with reversing cameras. It has two independent inputs, one of which can display images from one camera or another source (DVDs), and after engaging reverse gear, it automatically switches to the second image source - e.g. a reversing camera.

Specification:

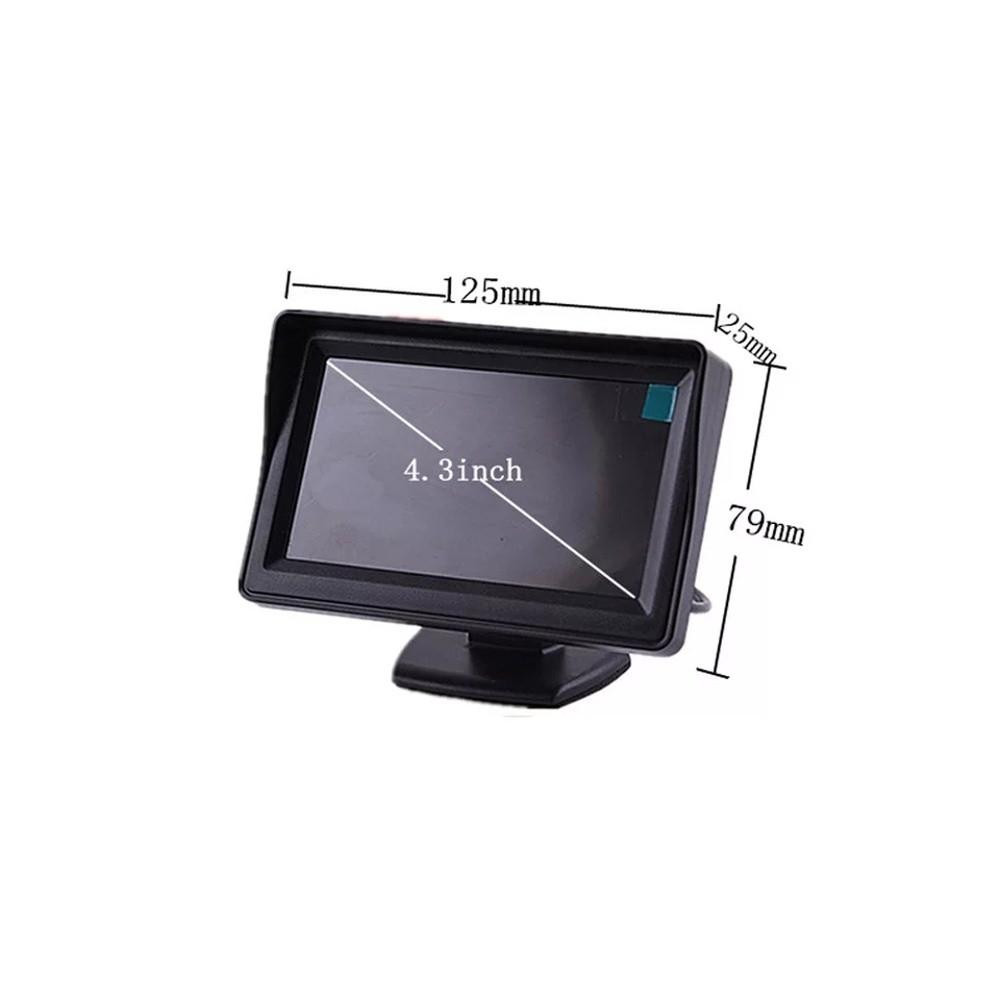

Matrix: 4.3" color picture: 4:3, 16:9 contrast: 400:1 170 degree viewing angle resolution: 480x272 Matrix: Color TFT LCD dimensions: 80 x 128 [mm] display dimensions: 96 x 54 [mm] Power: 12V (10-15V) Working temperature: -40 to 85 degrees C Monitor turns on automatically when reverse gear is engaged Supports systems: PILE (Europe) and NTSC (USA) Two independent entrances: AV1 and AV2 The set includes:

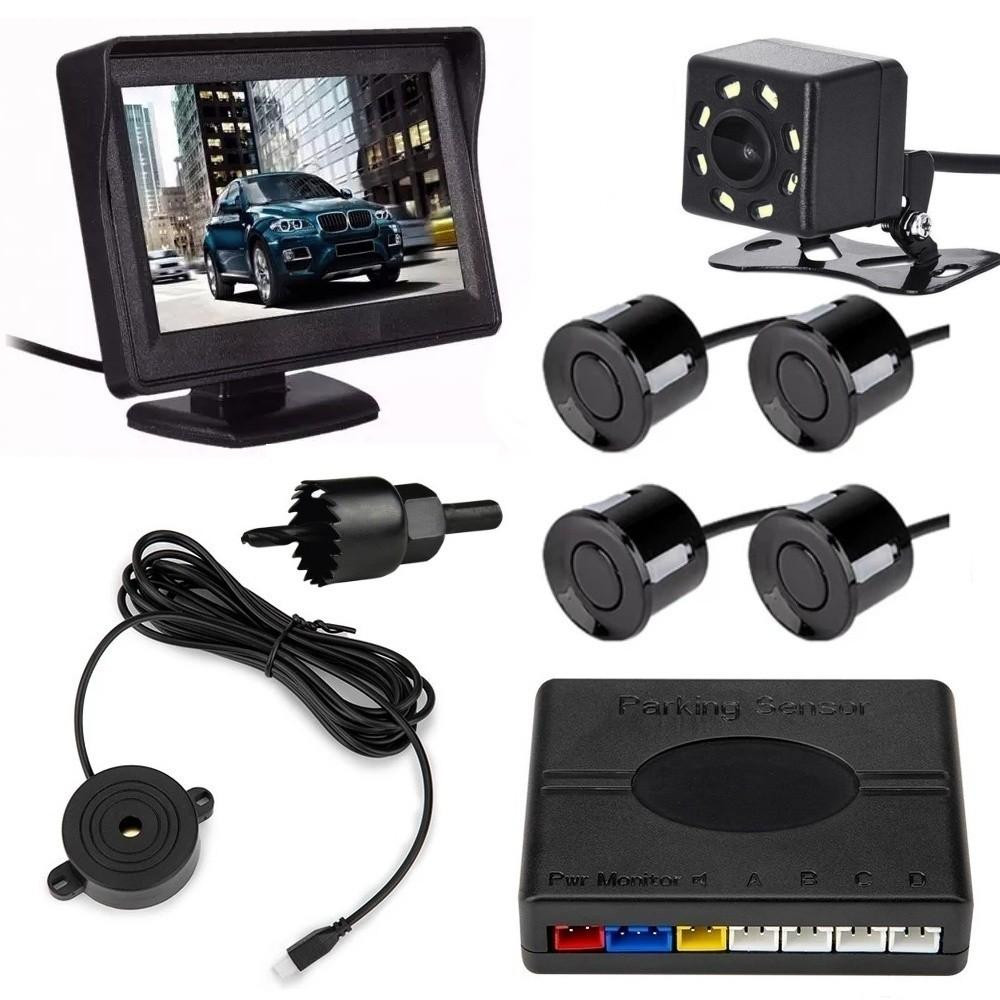

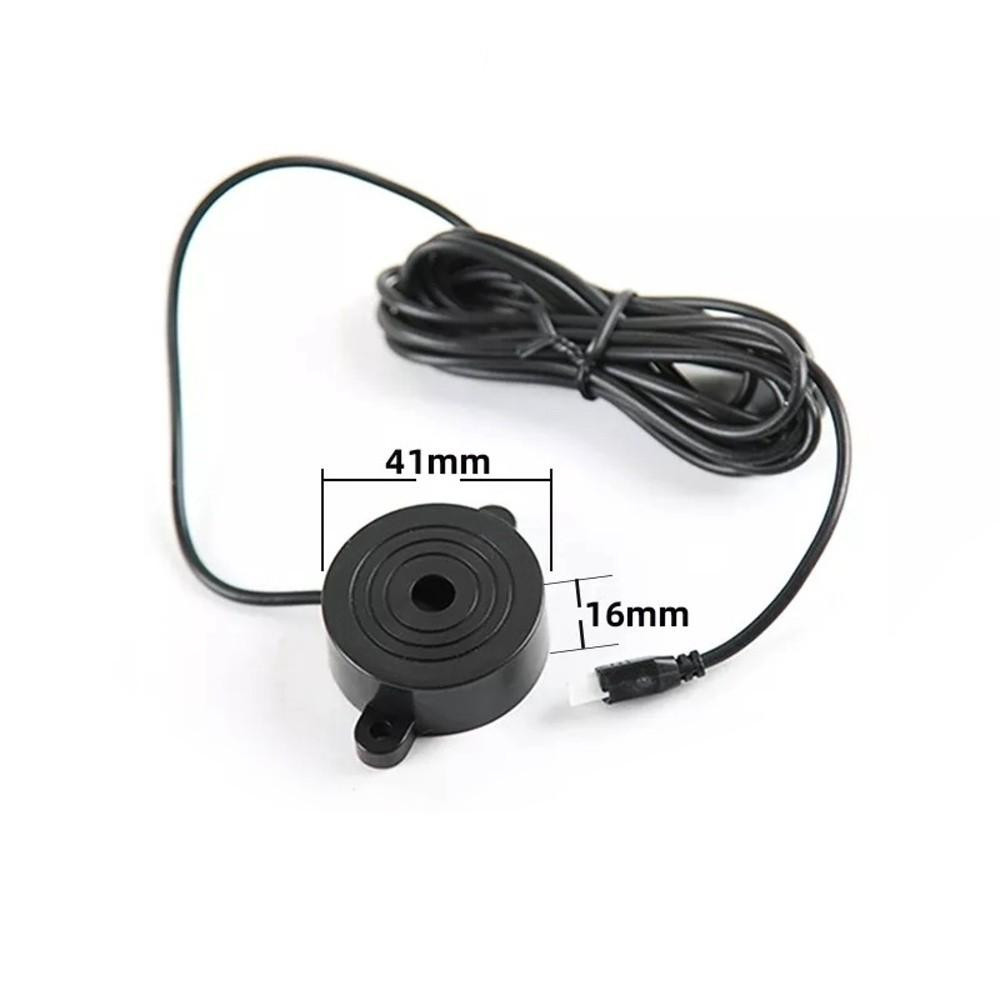

LCD display power cable: 90cm connection instructions 4 black ultrasonic sensors (possibility of varnishing - a maximum of two thin layers is recommended) Buzzer - buzzer - sounder Central - the main module to which we connect sensors, buzzer and power supply. Sensor hole saw - 22 mm Self-adhesive double-sided tape (to the buzzer, monitor and control panel) Reversing camera with 0.5m cable Video cable with signal wire 6m Power cord 1m Hole saw to drill a suitable hole for the camera connection instructions Certificates: CE
